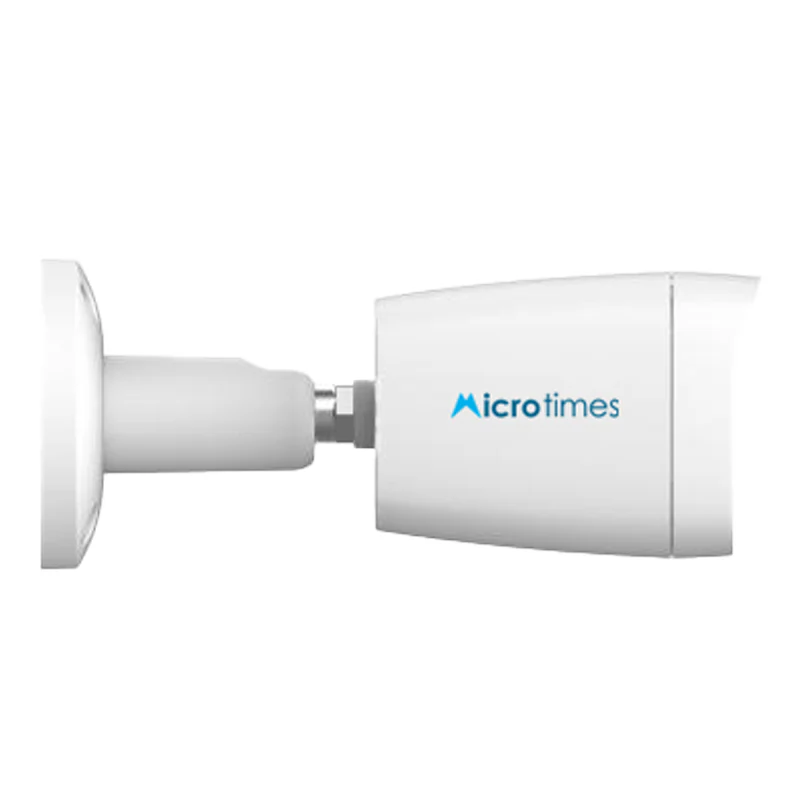

PRODUCT DESCRIPTION:

High quality imaging with 5MP resolution
1/2.8″SONY Starvis Back-illuminated CMOS sensor
Support H.264/H.265/JPEG/AVI Compression
Support Warm light LED 4000K, up to 25m
Support WDR
Housing: Metal, IP67

Camera

Image Sensor  1/2.8″ SONY Starvis Back-illuminated CMOS sensor

Resolution       5MP

Effective Pixels 2616(H)*1964(V)

Compression   H.264/H.265/JPEG/AVI

Audio Compression     G711A/U

TV System       PAL/NTSC

Electronic Shutter Time Auto: 1/3-1/100000Sec

Minimum Illumination   Colour: 0.006 Lux @ (F1.6, AGC ON),B/W: 0 Lux with white light

S/N Ratio         60dB

Scanning System        Progressive

Video Output   Network

Reset Button    Optional

Lens

Focal Length & FOV    2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 127°

3.6 mm, horizontal FOV 80°, vertical FOV 56°, diagonal FOV 107°

6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 62°

Lens Type        Fixed focal lens, 2.8, 3.6, and 6 mm optional

Focus Control  Fixed

Aperture          F1.0

Pixels  5MP

Night Vision

Supplement Light: No, Support Warm light LED 4000K, up to 25m

Supplement Light Distance      N/A

Supplement Light Status          Auto Control

Supplement Light Power On    Smart, Manual & Timed mode

Network

Ethernet           RJ-45 (10/100Base-T)

Wireless          N/A

Protocol           TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,  RTCP ,PPPoE, NTP,  SMTP, UDP, SNMP,Qos,802.1x

ONVIF Support ONVIF 19.12(Profile S/T/G)

P2P     YES

POE     Internal, Support IEEE 802.3af

Video Delay     0.3S (Within the Lan)

Main Stream 1 2592*1944@30fps

Main Stream 2 2560*1440@30fps

Main Stream 3 1920*1080@30fps

1280*720@30fps

Sub Stream 1   1280*720@30fps

Sub Stream 2   720*480@30fps

Sub Stream 3   N/A

Tri Stream        N/A

IE Brower         IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone   iPhone, Android

AI Function

Intelligent Analysis, Intrusion Detection(based on human and Vehicle Detection), Line Cross Detection(based on human and Vehicle Detection), Loiter Detection(based on human detection), People Gather Detection(based on human detection), Motion detection based on human detection.

Camera Features

Day/Night        Colour

Image Config   Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC

Full Colour       Support

Corridor Pattern           Support

Defog  Mode    N/A

ROI      Support

BLC     Support

WDR    Support

Motion Detection         Support(support enable the detection based on human movement only)

Privacy  Masking         3 Rectangular Zone

Recording Mode          NVR/CMS/Web

Language        Chinese Simplified, Chinese Traditional, English, Russian, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian,  Arabic, Vietnamese, Thai, Hungarian

Interface

Audio   Optional 1 Built-in MIC

Alarm   N/A

SD Card Slot    Optional Internal, Support Max 1TB

RS485 N/A

General

Housing           Metal ,IP67

Anti-cut Bracket           NO

IR Cut Filter     YES

Operation Temperature           -20℃ ~ +60℃ RH95% Max

Storage Temperature  -20℃ ~ +60℃ RH95% Max

Power Source  DC12V±10%, 700mA

Dimension       70(W) x 67.5(H) x 169(L)mm

Weight 600g
