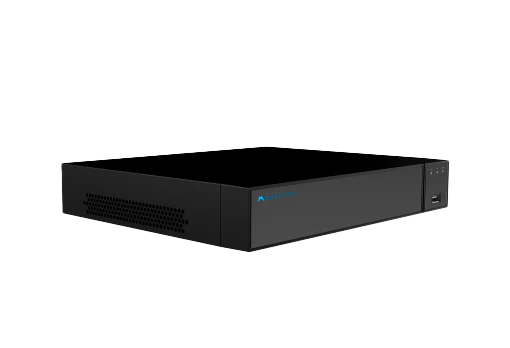

PRODUCT DESCRIPTION:

Support Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Input: 8CH BNC
Support Human Detection
Support H.265/H.265+/H.264/H.264+ Video Compression
1 SATA Hard Disk (2.5″/3.5″SATA, Up to 8TB)
Support a variety of Language

System

Main Processor           MC6650

Operating System        Embedded LINUX

Video

Input    Normal Mode:

Default: 8*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+4*network(Max 8MP)

Analog+Network: 6*Analog(8MP)+8*network(Max 8MP),4*Analog(8MP)+10*network(Max 8MP),2*Analog(8MP)+12*network(Max 8MP)

Lite Mode:

Default: 8*(TVI/AHD: 5M@12fps;  AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+4*network(Max 8MP)

Analog+Network: 6*Analog(5M@12fps)+8*network(Max 8MP),4*Analog(5M@12fps)+10*network(Max 8MP),2*Analog(5M@12fps)+12*network(Max 8MP)

Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤80M)

Input    8CH BNC

Signal Type     Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

Output 1HD,1 VGA, 1 CVBS

Audio

Input    6 ChannelRCA,support AOC

Two-way Audio NO

Output 1 Channel RCA

Alarm

Sensor Input    4

Output 1

Motion Detection         12 Channel(max 16 Channel in pure network mode)

Trigger Events Recording,  Email, Screen tips, Buzzer, Push notifications(motion detection)

Email Alarm     Send Image to The Designated E-mail

AI Function

Human Detection         YES

PTZ

Interface          RS485

Protocol           Pelco-D, Pelco-P

Baud Rate       110~921600

Address           0~255

Display

VGA     Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768

HD Output       Resolution: 3840×2160 1920×1080 1280×1024 1280×720 1024×768

Display Split     1/4/8/9/16

Privacy Masking          3 Rectangular Zones (Each camera)

OSD     Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression     H.265/H.265+/H.264/H.264+

Audio Compression     G.711u/G.711a

Resolution 5MP(2560×1952),8MP_LITE(1920×2160),5MP_HALF(1280×1952),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(960×480)

Video Quality   Lowest/Low/Ordinary/Good/Better/Best

Record Rate    Normal Mode: Analog:PAL:8MP_LITE(1920×2160 8*8fps), 5MP(2560×1952 8*6fps),5MP_LITE(1280×1952 8*10fps), 4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps),3MP(2048×1536 8*9fps),3MP_Lite(1024×1536 8*18fps), 1080P(1920×1080 8*15fps),720P(1280×720 8*25fps), 960H(960×480 8*25fps)

NTSC:8MP_LITE(1920×2160 8*8fps), 5MP(2560×1952 8*6fps),5MP_LITE(1280×1952 8*10fps), 4MP(2560×1440 8*8fps),4MP_LITE(1280×1440 8*15fps),3MP(2048×1536 8*9fps),3MP_Lite(1024×1536 8*18fps), 1080P(1920×1080 8*15fps),720P(1280×720 8*30fps), 960H(960×480 8*30fps)

Lite Mode:

PAL:5MP_Lite(1280×1952 8*10fps),4MP_Lite(1280×1440 8*15fps),3MP_Lite(1024×1536 8*18fps),1080N(960×1080 8*25fps),720P(1280×720 8*25fps), 960H(960×480 8*25fps)

NTSC: 5MP_Lite(1280×1952 8*10fps),4MP_Lite(1280×1440 8*15fps),3MP_Lite(1024×1536 8*18fps),1080N(960×1080 8*25fps),720P(1280×720 8*25fps), 960H(960×480 8*30fps)

Pure IP(H.265):

PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps

NTSC:8MP@9x30fp, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps

Record Mode   Manual\Timer\Motion Detection\Alarm

Playback & Backup

Decode Capability       4*1080P@30fps

Sync Playback Normal Mode:

Pure Analog: 8CH 5M@6fps, 7CH 8M_Lite@8fps, 8CH 4M@8fps, 8CH 3M@9fps, 8CH 1080P@15fps

Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps

Pure IPC:  1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Lite Mode:

Pure Analog:8CH 5M_Lite@ 8CH 1080N@25fps,8CH 720P@25fps,8CH 960H@25fps

Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps

Pure IPC:  1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback        4 Channel / 1Channel

Search Mode   ALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Tag

Playback Functions     Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen

Smart Phone Playback 4 Channel

Backup Mode  USB Device(with fomat FAT 32 )/Network/FTP

Network

Interface          1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions       TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS  Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN,DYNAMIC_PLANET,EASY_PLANET

Web Browser   Edge,IE8-11, Google Chrome , Firefox ,Safari

CMS Software Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS

Extra Stream   CIF/D1(1-30fps)

Smart Phone   iPhone, ipad,  Android ,Android pad

Hard Disk Driver

Interface Type 1 SATA Interface

Capacity          1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)

General

Language        Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,

UTC Control    YES

USB Interface  2 USB 2.0 Interfaces

Power consumption     DC 12V/2A  ≤10W (Without Hard Disk)

Working Environment  -10~55℃/10~90%

Dimension (W×D×H)    260*215*43(mm)

Weight 2kg (Without HDD)
